ROWE VarioFold Compact-FOLDER - Made in Germany
In Stock

ROWE VarioFold Compact-FOLDER – Made in Germany

Call for Price

Professional folding machine (online)

SKU: CW0040 Categories: , Tag:

Description

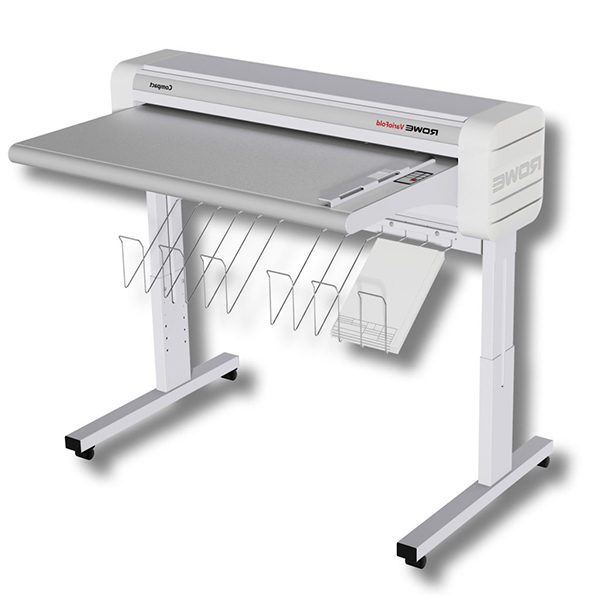

THE NEW ROWE VarioFold Compact folding machine.
Patented: offline becomes online.
More than half of all users of offline folding systems want to be able to fold online in the medium term. Up to now this has meant expensive re-construction of the folding system. With VarioFold Compact you can spare yourself this, thanks to its modular construction. This is the first folding machine worldwide that can be extended from offline to online with minimum outlay, even after it has already been put into operation. This guarantees you maximum security for your investment.

ROWE even goes a step further: whether it is the height adjustment that’s easy on your back, the whisper quiet folding, the patented endless folding or the user-specific folding programs – the VarioFold Compact can be extended at any time. This means it’s the first folding machine worldwide that grows with its user. A real innovation ‘Made in Germany’ – Made by ROWE.

Experience the fascination of ROWE. Simply make an appointment with the authorized dealer in your area.



What's Included

Technical Data. Base Unit.1

  • ✓ Standard
  • o/+ Can be upgraded on site
FEATURES DESCRIPTION VarioFold Compact
Modular construction Worldwide first completely modular folding system, can be upgraded on-site to an online solution at any time ✓
High-quality aluminum spaceframe construction Extremely stable chassis in aluminum spaceframe construction, extremely torsion resistant for maximum folding precision and durability ✓
Quiet folding Optimal for integration into office environments thanks to state-of-the-art step motor technology ✓
Emission: not measurable in energy saving mode, in operating mode 50 db (A) in acc. with ISO 7779 ✓
Fully automatic clearance of paper Easy clearance of paper from the folding space at the push of a button ✓
Media width 210 mm – 960 mm (8.27″ – 37.8″) ✓
Media types / weights Normal and inkjet paper, 60 – 120 g/m² (paper weight: 16-32 lb) ✓
Fan Folding Up to 2500 mm (98.43″) ✓
Up to 4000 mm (157.48″): see ROWE FOLD APP SE +/ o
Up to 30 m (98.43 ft) or unlimited: see Endless Folding Kit 30/UNLIMITED (patented) +/ o
Cross folding Up to 1500 mm ( 59.06″) for DIN folding ✓
Up to 2500 mm (98.43″) for DIN folding: see ROWE FOLD APP SE +/ o
Standard folding programs Fan folding: 190 mm/210 mm (7.48″/8.27″), 185 mm/210 mm, (7.28″/8.27″), 180 mm/210 mm ( 7.09″/8.27″), 198 mm (7.8″), 210 mm (8.27″) and 210 mm (8.27″) packet folding ✓
Cross folding: 297 mm (11.69″) and 305 mm (12.01″) ✓
Special folding programs Packet width fan folding:
180 mm – 305 mm (7.09″ – 12.01″), freely adjustable in steps of 1 mm (0.04″): see ROWE FOLD APP SE		 +/ o
Packet width fan folding:
90 mm – 420 mm (3.54″ – 16.54″), freely adjustable in steps of 1 mm (0.04″): see ROWE FOLD APP PRO		 +/ o
Packet width cross folding:
210 mm – 305 mm (8.27″ – 12.01″), freely adjustable in steps of 1 mm (0.04″): see ROWE FOLD APP SE		 +/ o
Packet width cross folding:
180 mm – 420 mm (7.09″ – 16.54″), freely adjustable in steps of 1 mm (0.04″): see ROWE FOLD APP PRO		 +/ o
Filing margin 0 mm (0″), 20 mm (0.79″), 25 mm (0.98″) and 30 mm (1.18″) ✓
0 mm – 35 mm (0″ – 1.38″), freely adjustable in steps of 1 mm (0.04″): see ROWE FOLD APP SE +/ o
ROWE FOLD APP LT2 App for easy counter reading: folded documents, foldings and linear feet. Includes 12 pre-installed standard folding programs ✓
USB interface For ROWE FOLD APP LT/SE/PRO, including USB cable ✓
Folding standards DIN 824 A, B, C (A4, A3, A2, A1, A0), AFNOR similar (A4, A3, A2, A1, A0), ANSI (A, B, C, D, E), ARCH (A, B, C, D, E), Ericsson (A4, A3, A2, A1, A0), French ✓
Folding speed 20 m/min (65.62 ft/min) in offline operation, up to 20 m/min (65.62 ft/min) in online operation with multispeed and short gap technology for automatic adjustment of folding speed to the output system ✓
Custom Speed 2 Reduction of folding speed in offline operation for special requirements. Included in the ROWE FOLD APP LT ✓
Power connection 100 – 240 V, 50/60 Hz ✓
Power consumption Energy saving mode: < 0.8 Watt, operating mode: 58 Watt ✓
Dimension and Weight Dimension and weight are dependent on your individual configuration. All details can be found in the configurator at www.rowe.one/configurator ✓
Interfaces RS 232 serial/CAN/USB ✓
Certificates RoHS, CE, UL, cUL, CB, FCC Part 15 Class B, EAC ✓
